Normstahl Springs

Compare your spring with the springs shown on this page. Next to each spring image you will find precise instructions on where to look for the type number. Once you have found the type number, you can easily purchase the correct spring.

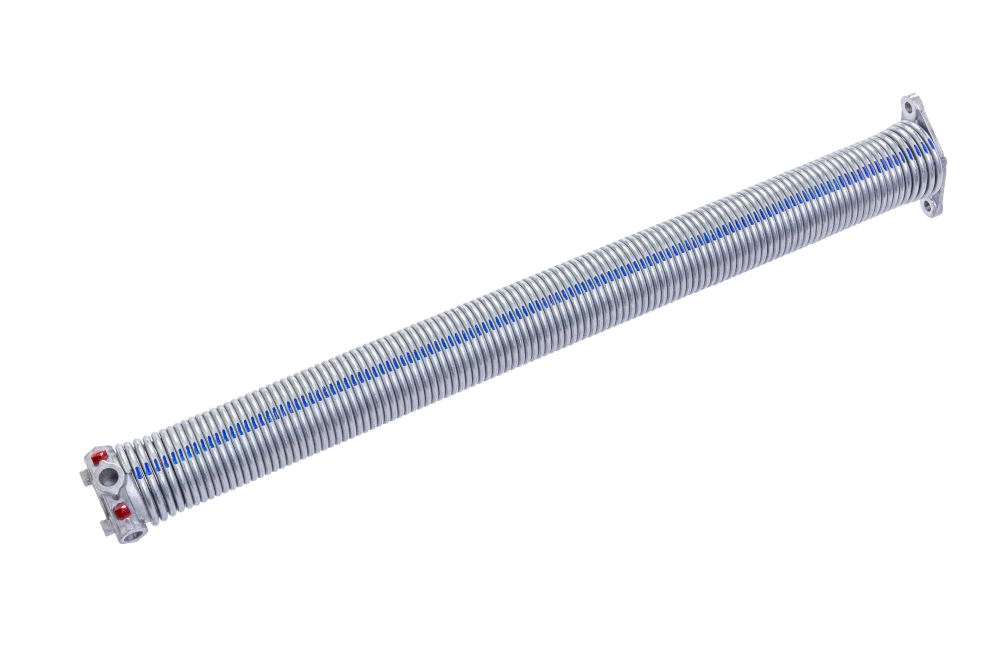

Torsion springs for Normstahl sectional garage doors.

1 / 2

2 / 2

❮ ❯

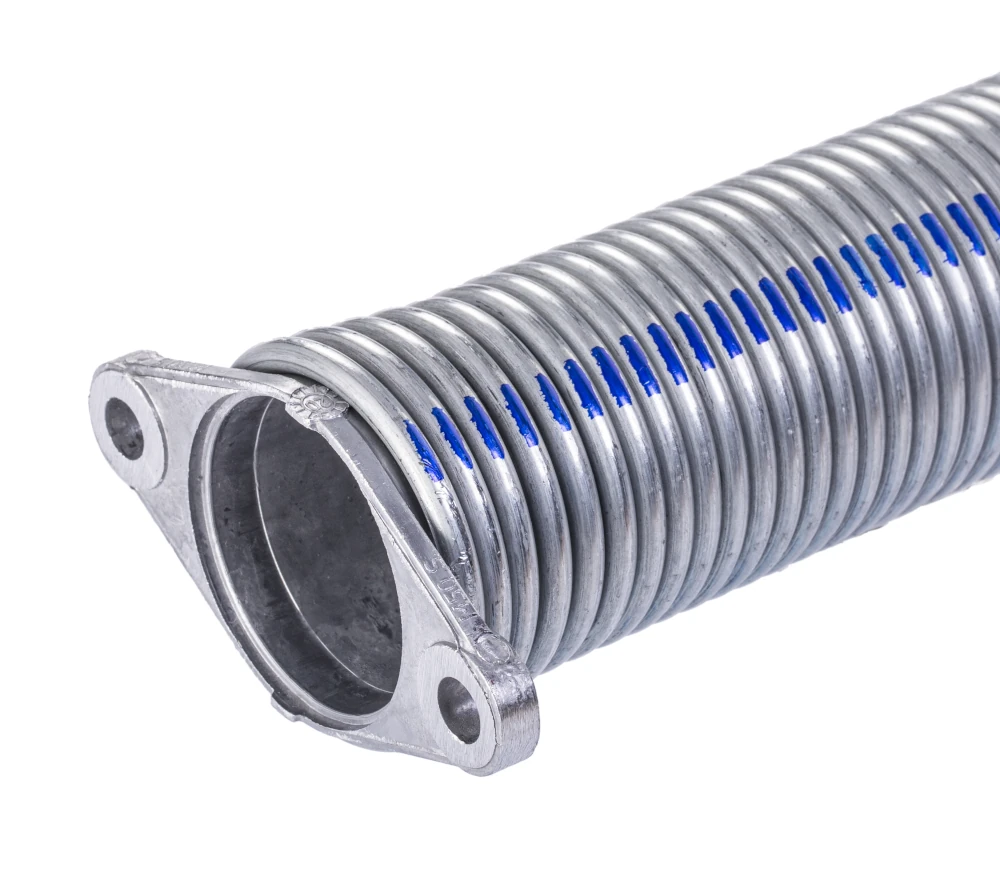

The spring is horizontal. A shaft runs through it. The aluminium spring end can be removed.

Door type names:

• Euro
  (Euro-Classic ISO; Euroclassic ISO; Euroflair ISO; Eurostyle ISO; Euroline ISO; Euroframe wood; Euroflame alu; etc...)
• G60
• G30
• Superior 2.0
• Superior 42.2
• Superior +42.2
• SUP+42
• SUP2.0
• etc...

Finding the type number:

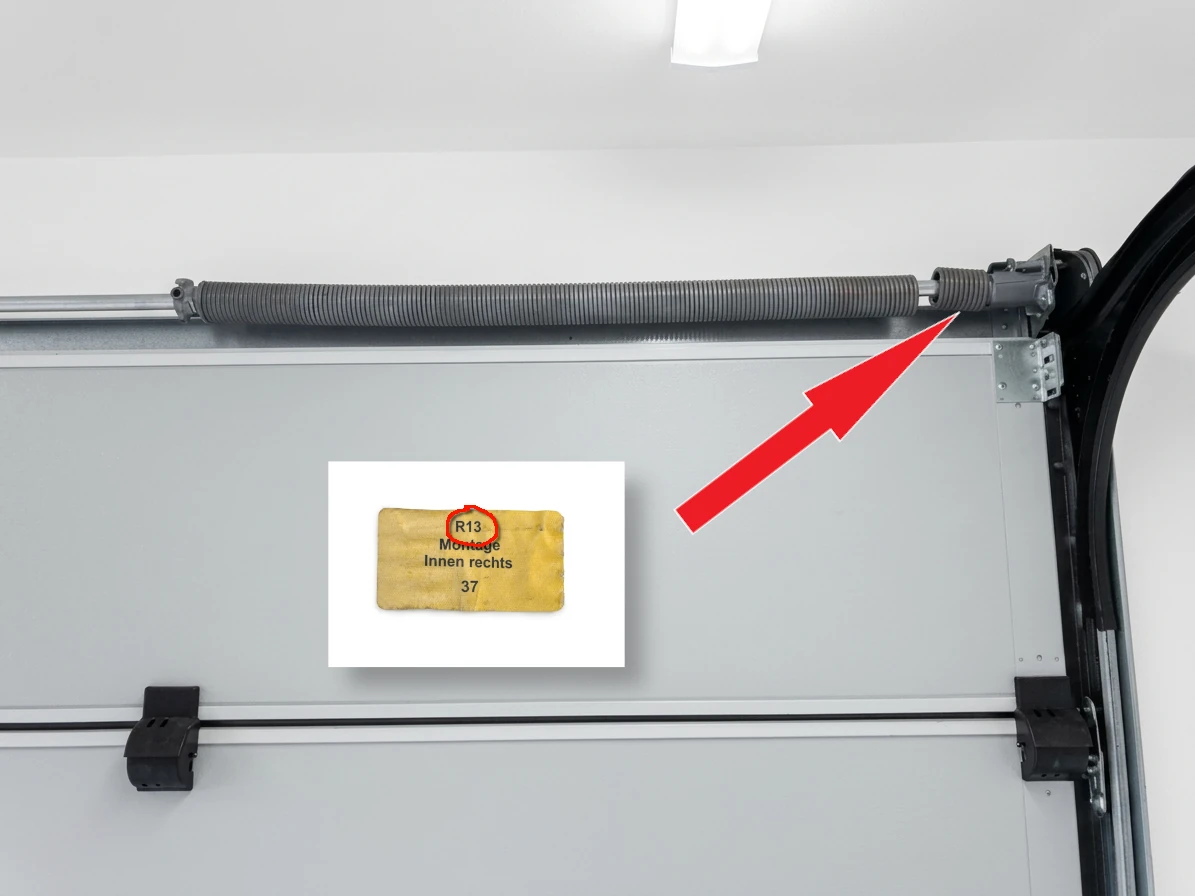

• There is sometimes a yellow or white label on the spring. It contains a number beginning with L or R, for example L8 or R12
• If there is no number beginning with L or R on the spring label, simply send us a photo of the label to the email address below. We may be able to identify the spring.
• The door data plate does not state which springs are suitable for it. However, for certain Euro doors we can calculate the correct spring from the information on the data plate.
• If there is no spring label, the quickest solution is to measure the springs on both sides according to our measuring guide: Measuring guide Also photograph them according to our photo guide: Photo guide. Then send us the measurements and photos to the email address below.

Torsion springs for Normstahl sectional garage doors.

1 / 2

2 / 2

❮ ❯

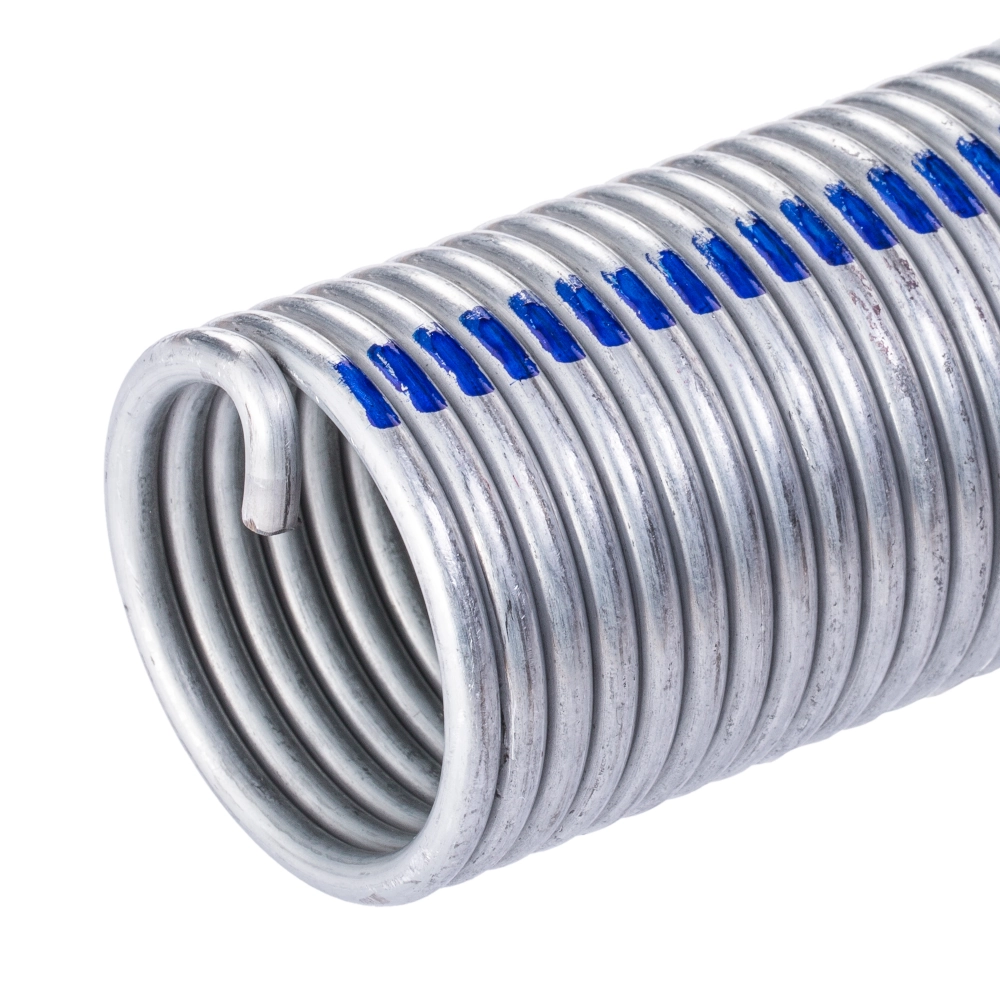

The spring is horizontal. A shaft runs through it. The aluminium spring end cannot be removed from the spring.

Door type names:

• Smart
• Smart 42.2
• Smart +42.2
• Smart +42.2 WIDE
• Base 42
• Basematic
• etc..

Finding the type number:

The spring has no type number and is ordered by size. Measure the springs on both sides according to the measuring guide: Measuring guide Also photograph them according to our photo guide: Photo guide. Send us the measurements and photos to the email address below.

To place an order, please write to us at the email address below.

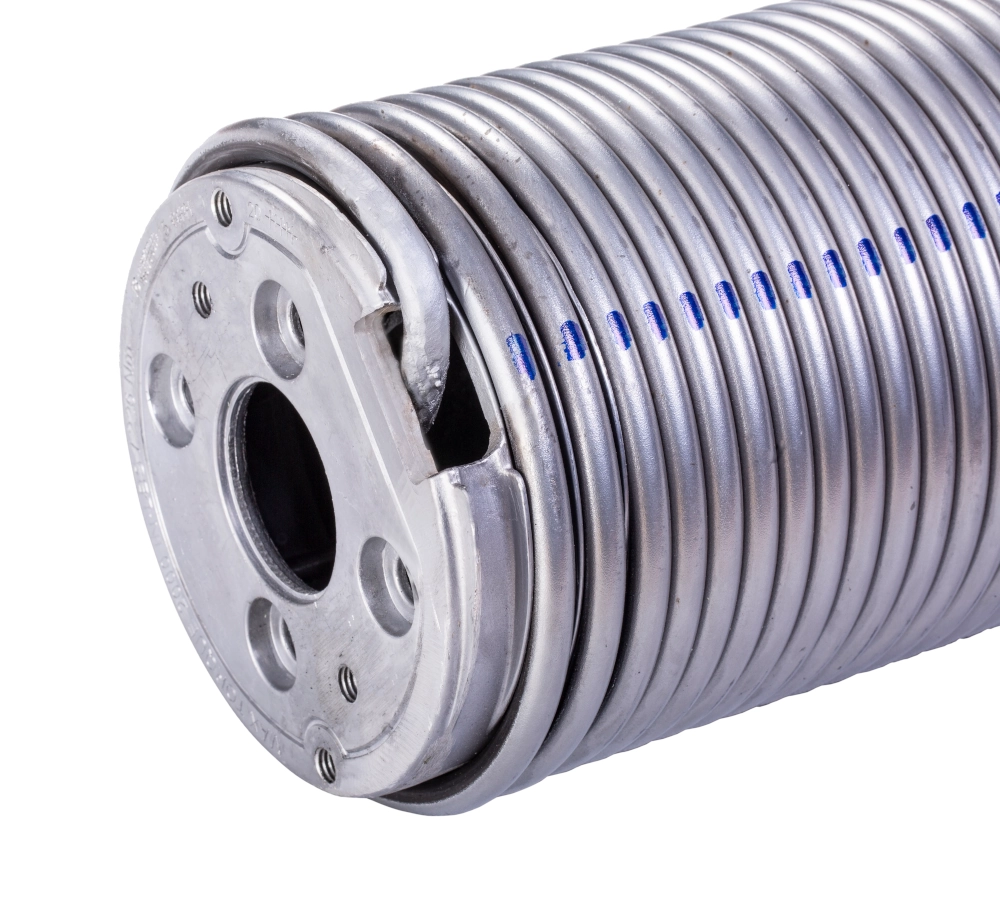

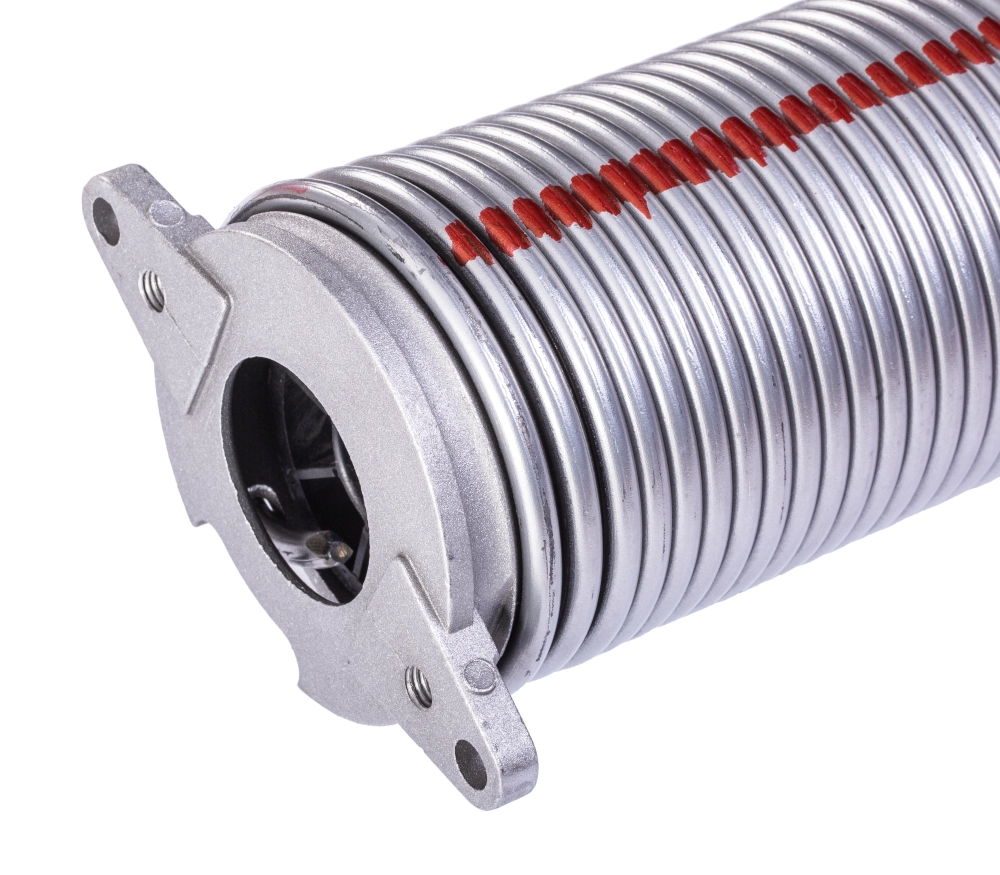

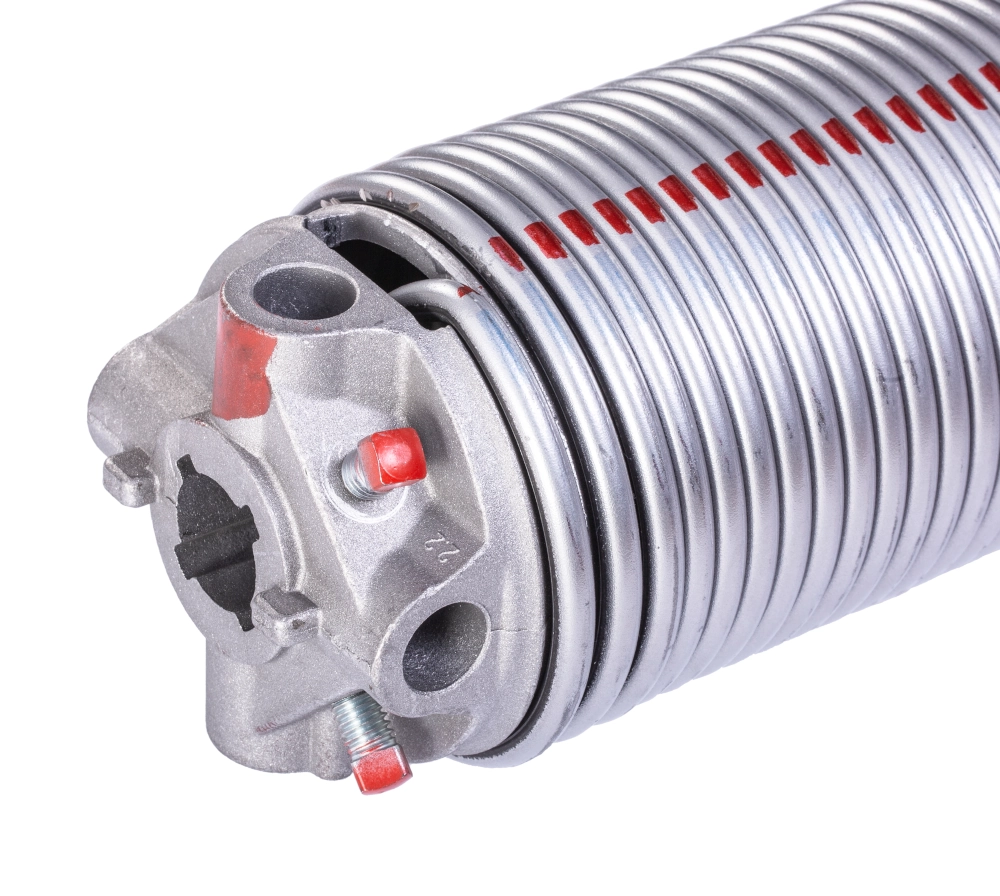

Torsion springs for Normstahl sectional industrial doors.

1 / 4

2 / 4

3 / 4

4 / 4

❮ ❯

The spring is horizontal. A shaft runs through it. The aluminium spring end cannot be removed from the spring.

Door type names:

• ISO
• Smart XL
• etc..

Finding the type number:

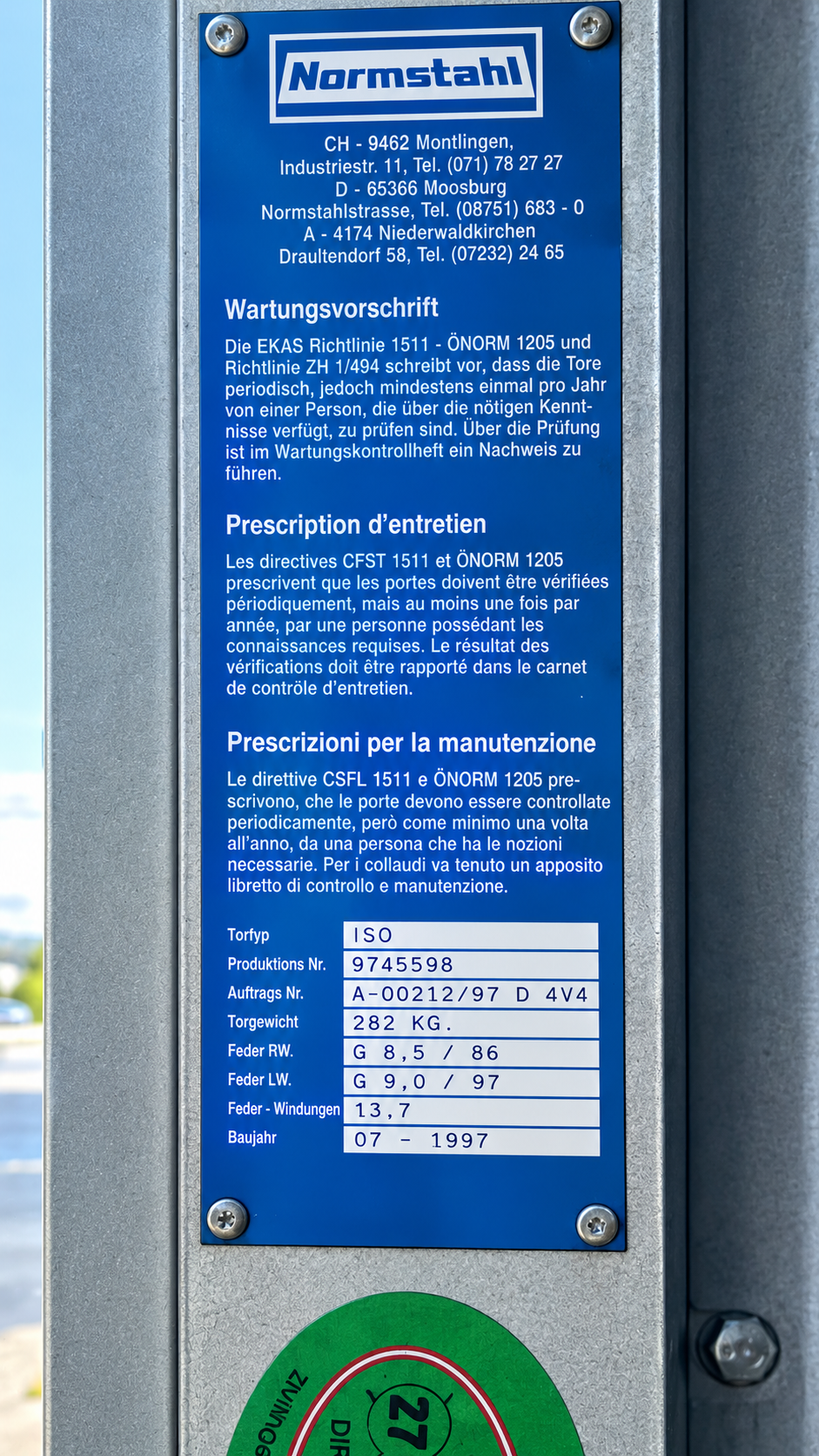

The spring type number is often shown on the door data plate. However, sometimes the type number is incomplete, so the spring occasionally needs to be measured. Photograph the data plate and the door according to the guide provided here: Photo guide

Send us the photos and the outside diameter of the spring to the email address at the bottom of the page.

To place an order, please write to us at the email address below.

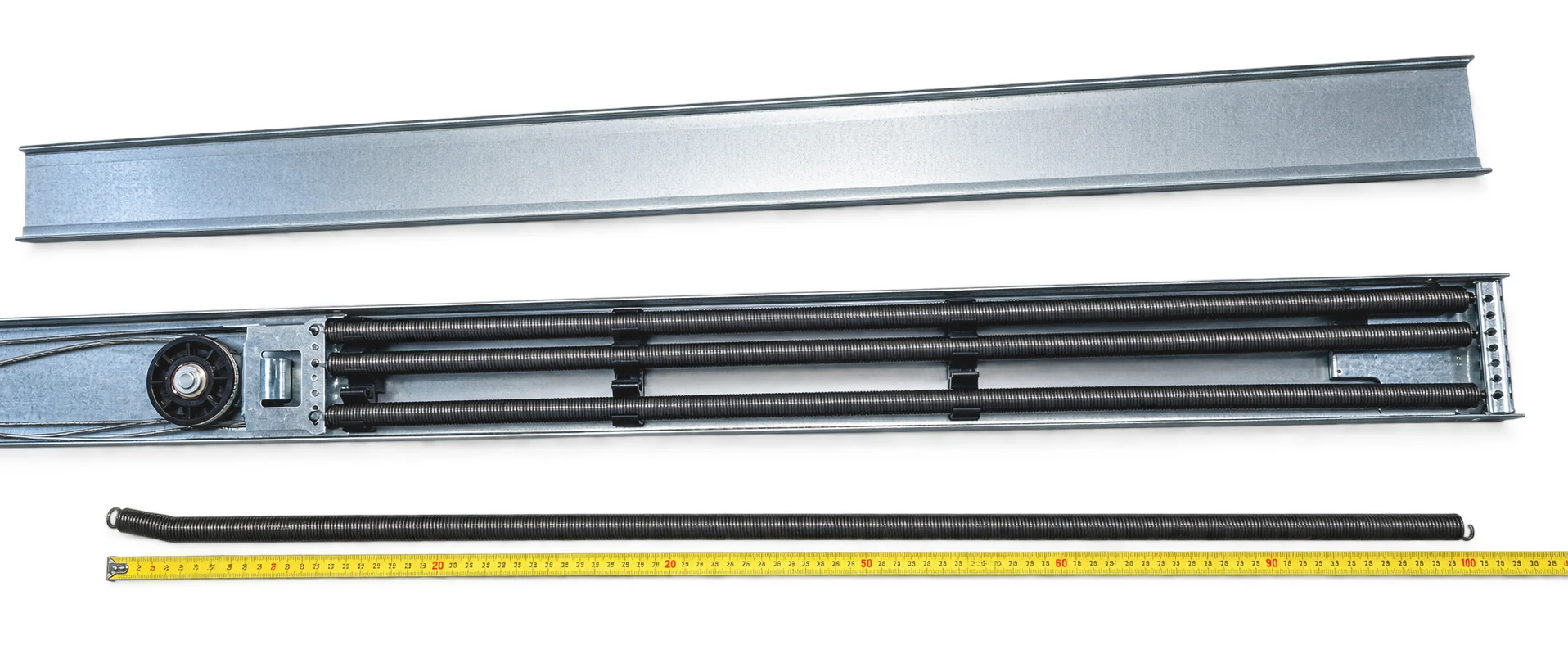

Horizontal tension springs for Normstahl sectional garage doors.

1 / 1

❮ ❯

The spring is always horizontal. It is located above the door or at the side.

Door type names:

• G60
• G30
• Superior 2.0
• Superior 42.2
• Superior +42.2
• SUP+42
• SUP2.0
• etc..

Finding the type number:

The spring has no type number. Unhook the spring that is in the best condition and measure it according to the tension spring measuring guide: Tension spring measuring guide Also photograph them according to our photo guide: Photo guide. Send us the measurements and photos to the email address below.

To place an order, please write to us at the email address below.

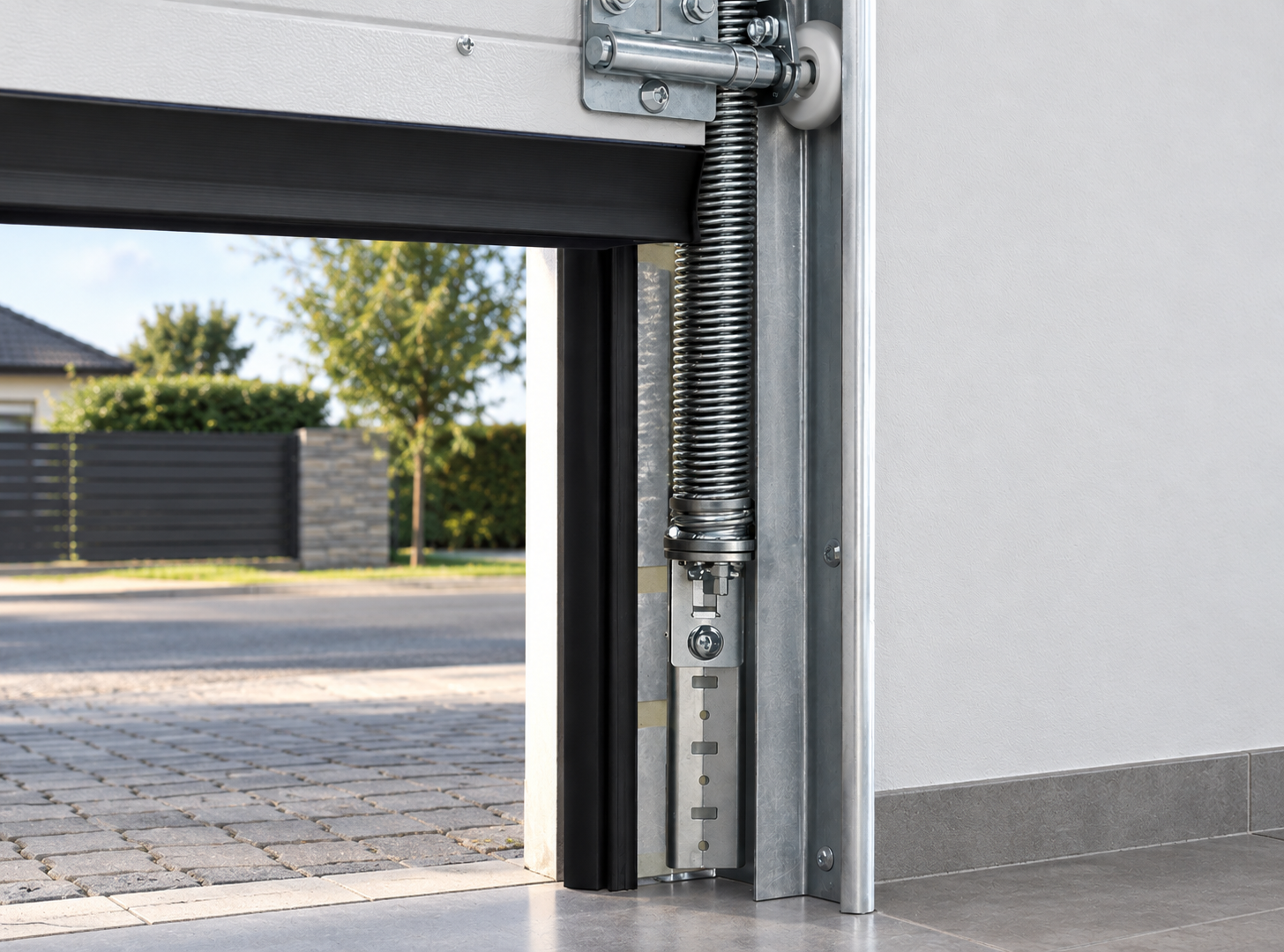

Vertical tension springs for Normstahl sectional garage doors.

1 / 1

❮ ❯

The springs are vertical. They are located inside the door hardware.

Door type names:

• Smart
• Smart 42.2
• Smart +42.2
• Smart +42.2 WIDE
• Base 42
• Basematic
• etc..

Finding the type number:

Unfortunately, the spring type number is rarely shown on the data plate. However, it is usually printed on the label at the end of the spring. The number begins like this: TSS... or TSC... Unhook the spring that is in the best condition and measure it according to the tension spring measuring guide: Tension spring measuring guide Also photograph them according to our photo guide: Photo guide. Send us the measurements and photos to the email address below.

To place an order, please write to us at the email address below.

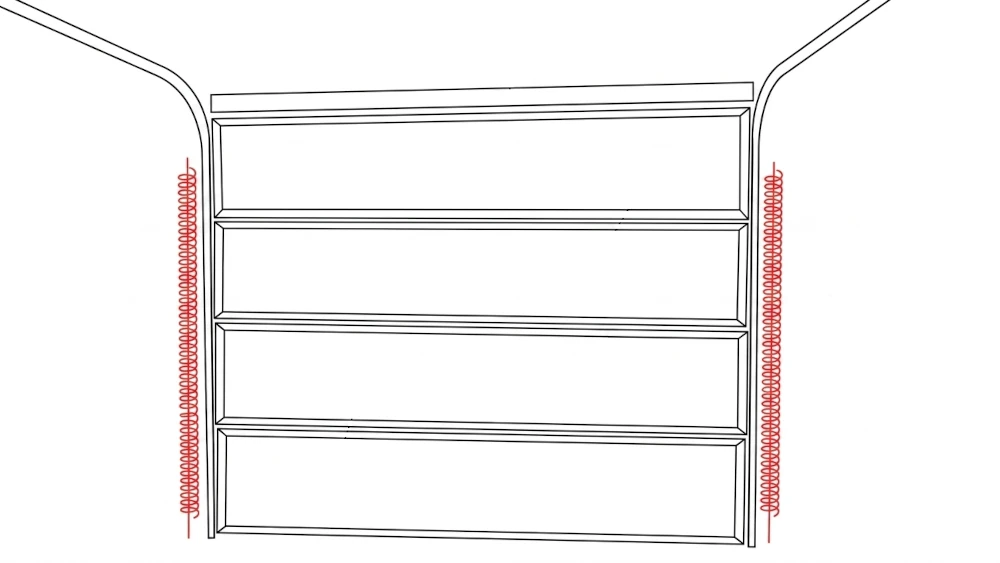

Vertical tension springs outside the frame for Normstahl (sectional) garage doors

1 / 1

❮ ❯

The springs are vertical. They are located outside the door hardware.

Door type names:

• Thermo Sanwich
• DUO-TOR
• VNA-Tore
• etc..

Finding the type number:

The spring has no type number. Unhook the spring that is in the best condition and measure it according to the tension spring measuring guide: Tension spring measuring guide If there are several springs of different sizes, each of them must be measured. Also photograph them according to our photo guide: Photo guide. Send us the measurements and photos to the email address below.

To place an order, please write to us at the email address below.

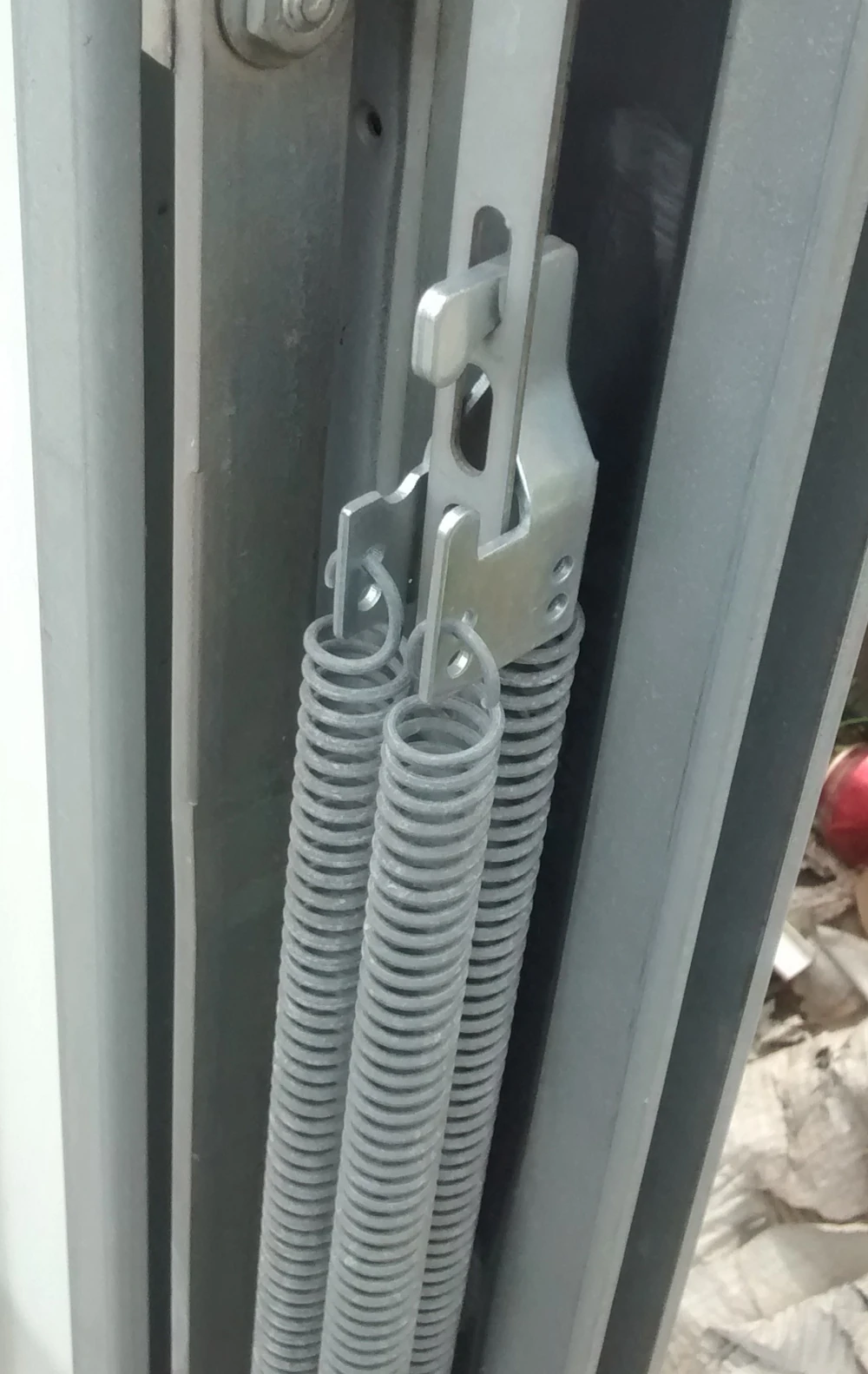

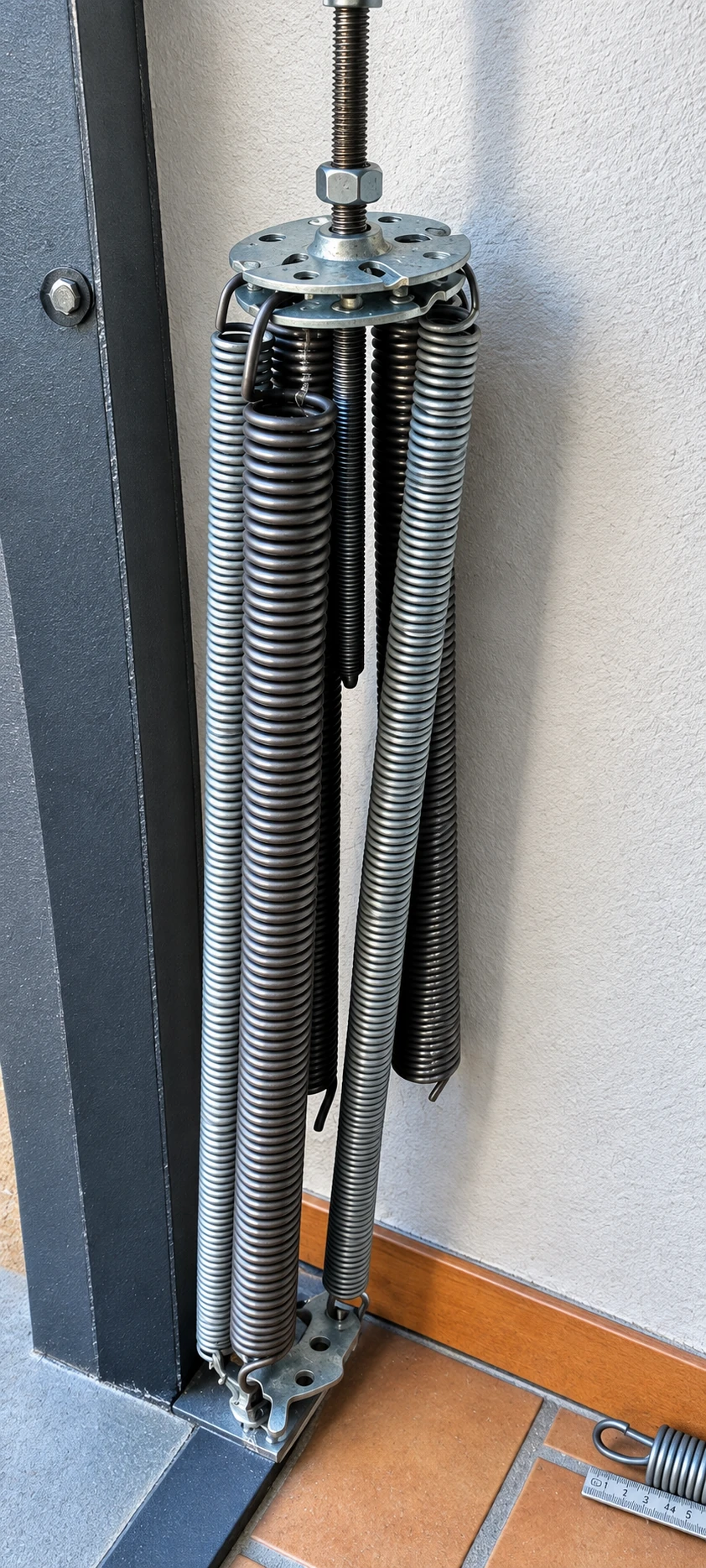

Tension springs for Normstahl up-and-over garage doors.

1 / 2

2 / 2

❮ ❯

The springs are vertical.

Door type names:

• Prominent
• Twenty
• etc..

Finding the type number:

The spring has no type number. Unhook the spring that is in the best condition and measure it according to the tension spring measuring guide: Tension spring measuring guide If there are several springs of different sizes, each of them must be measured. Also photograph them according to our photo guide: Photo guide. Send us the measurements and photos to the email address below.

To place an order, please write to us at the email address below.
