Novoferm Springs

Compare your spring with the springs shown on this page. Next to the spring images you will find precise instructions on where to look for the type numbers. Once you have found the type number, you can easily purchase the correct spring.

Torsion springs for Novoferm sectional garage doors.

1 / 4

2 / 4

3 / 4

4 / 4

❮ ❯

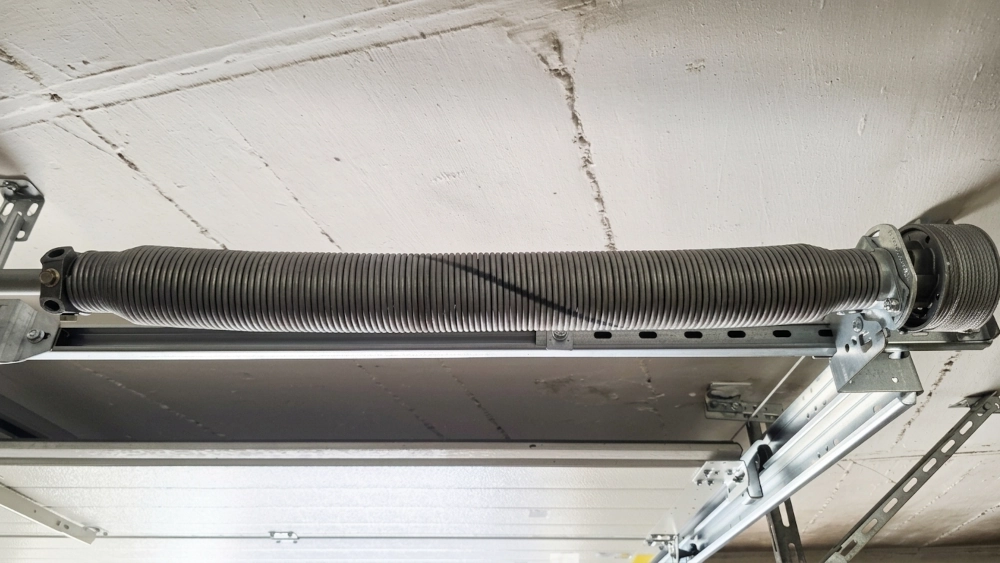

The spring is horizontal. A shaft passes through it. The aluminium spring end can be removed.

Garage door model names:

• Sektionaltor Novoferm E
• S
• S40
• S45
• S / GST / Si.
• S / GST / Ka.
• ISO / GST / Si.
• ISO
• ISO34
• ISO42
• ISO45
• ISO70
• etc.

Finding the type number:

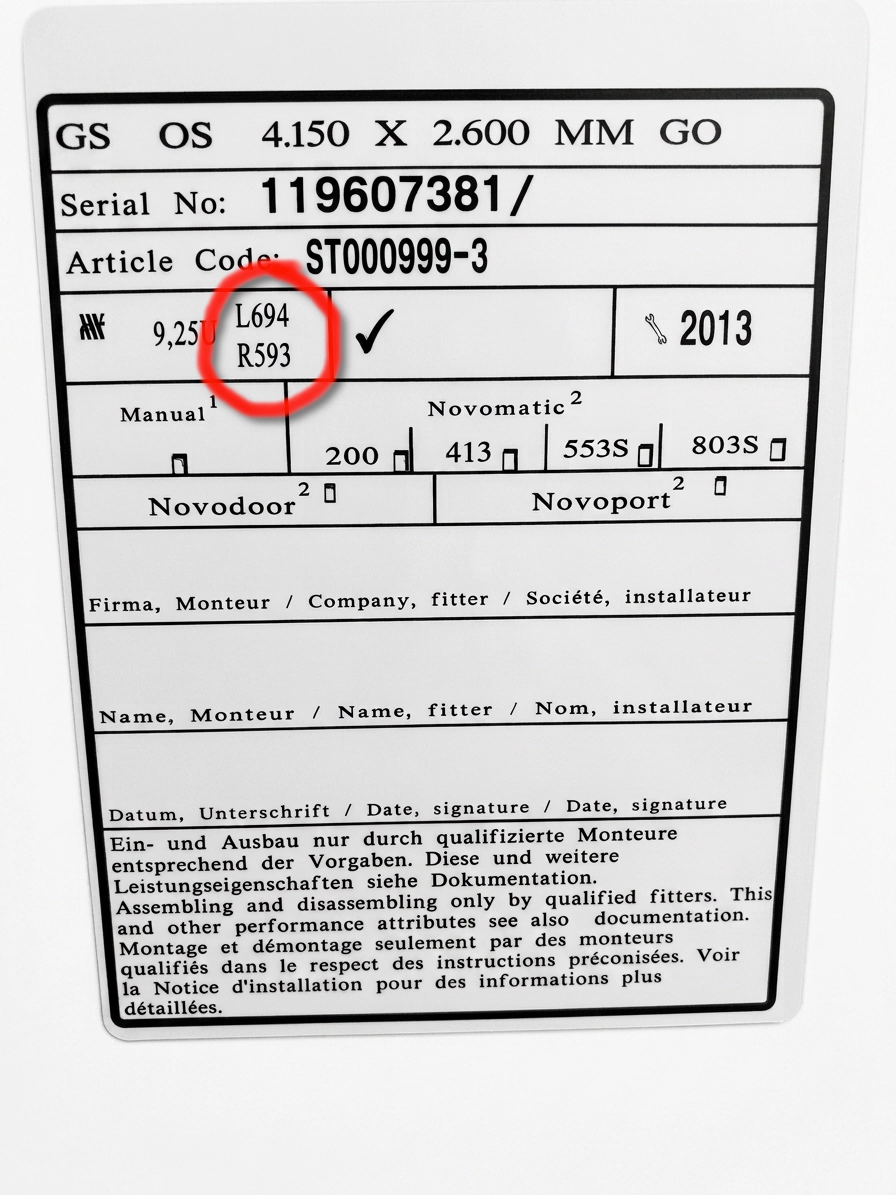

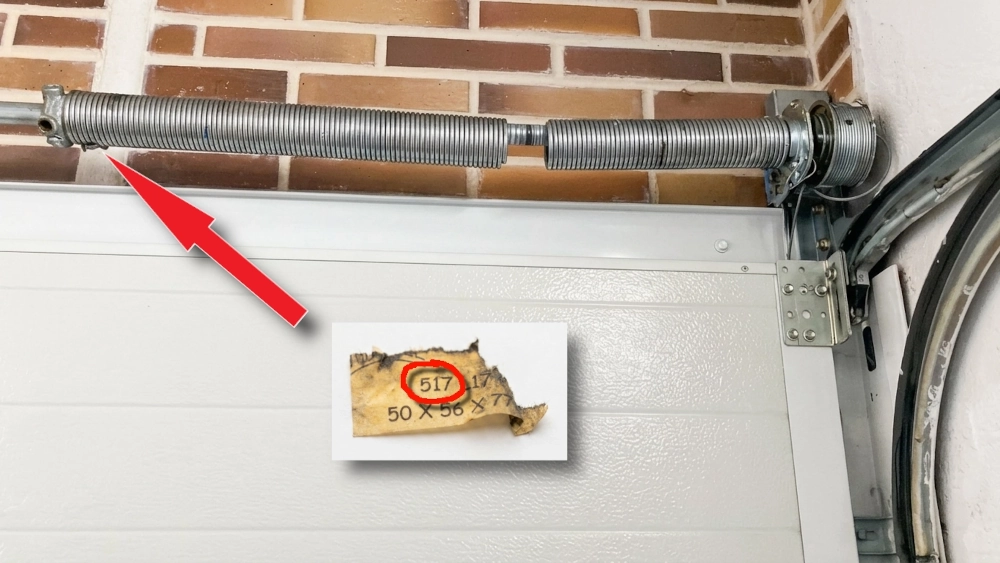

• The spring may have a yellow or white label with a three-digit number. It may be preceded by the letter L or R, for example: 517 or R517.
• The number may also be shown on the garage door data plate.
• If you cannot find the spring type number in either of the places above, measure both springs using the Measurement guide. Also take photographs following the Photography guide.

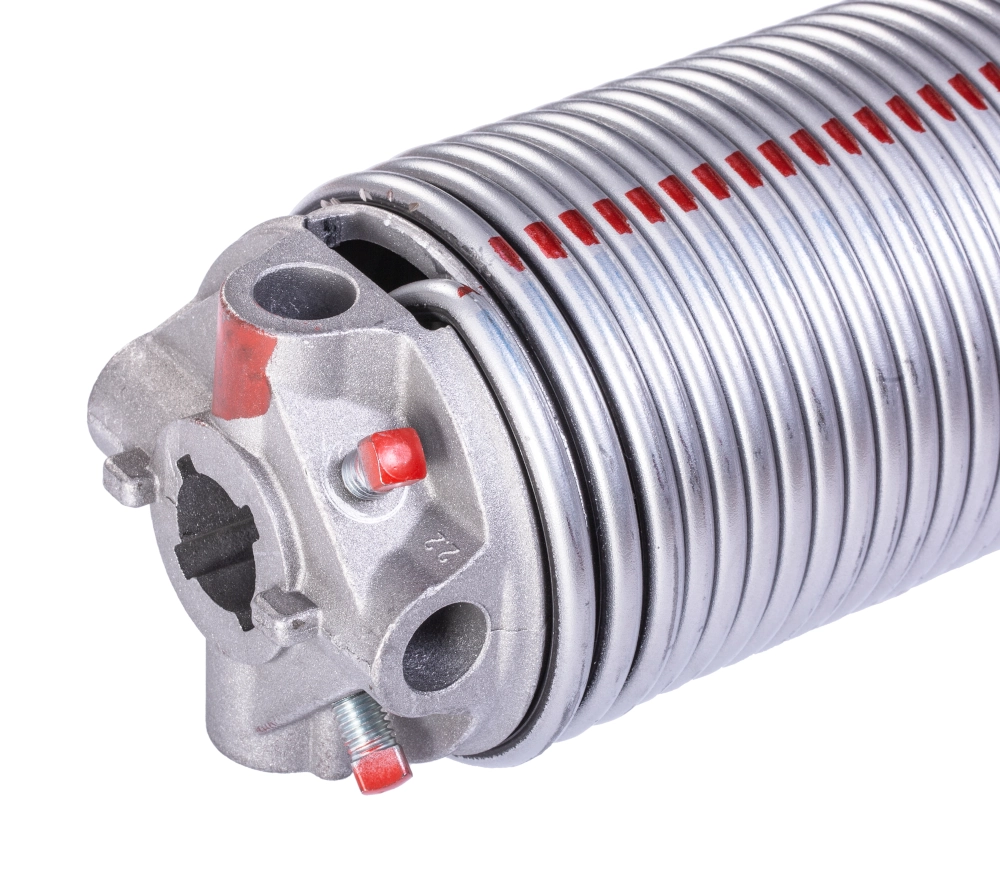

Torsion springs for Novoferm sectional industrial doors.

1 / 5

2 / 5

3 / 5

4 / 5

5 / 5

❮ ❯

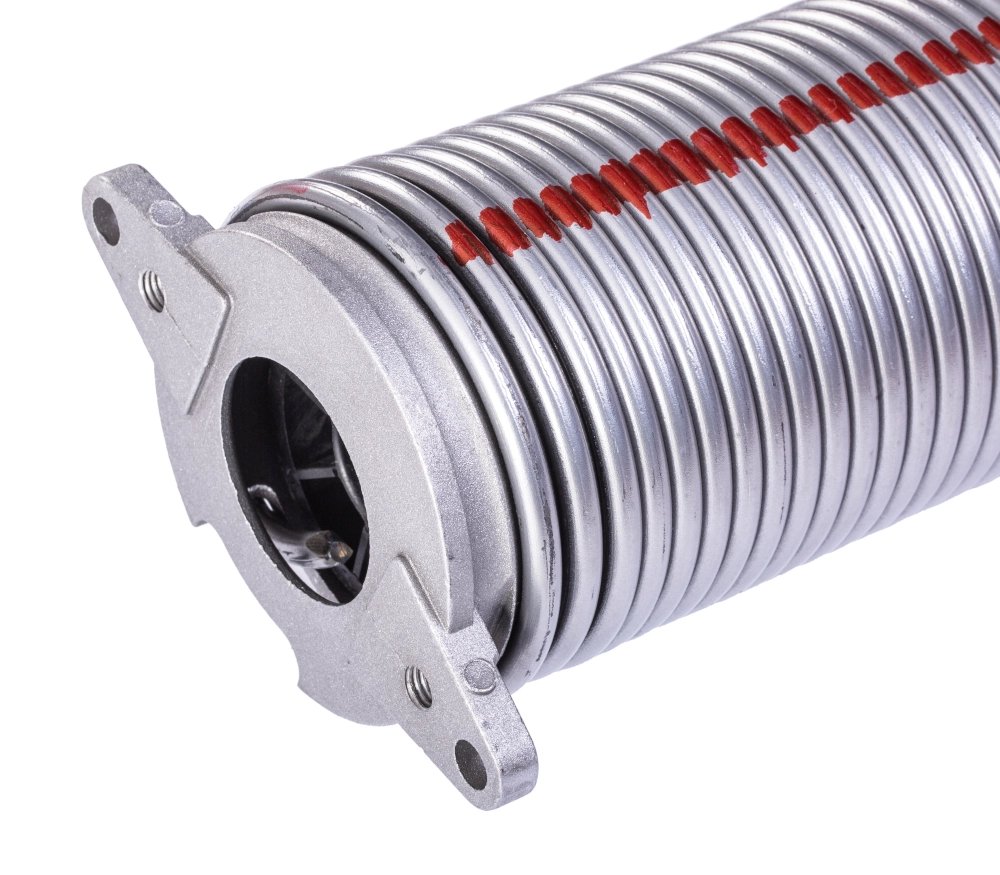

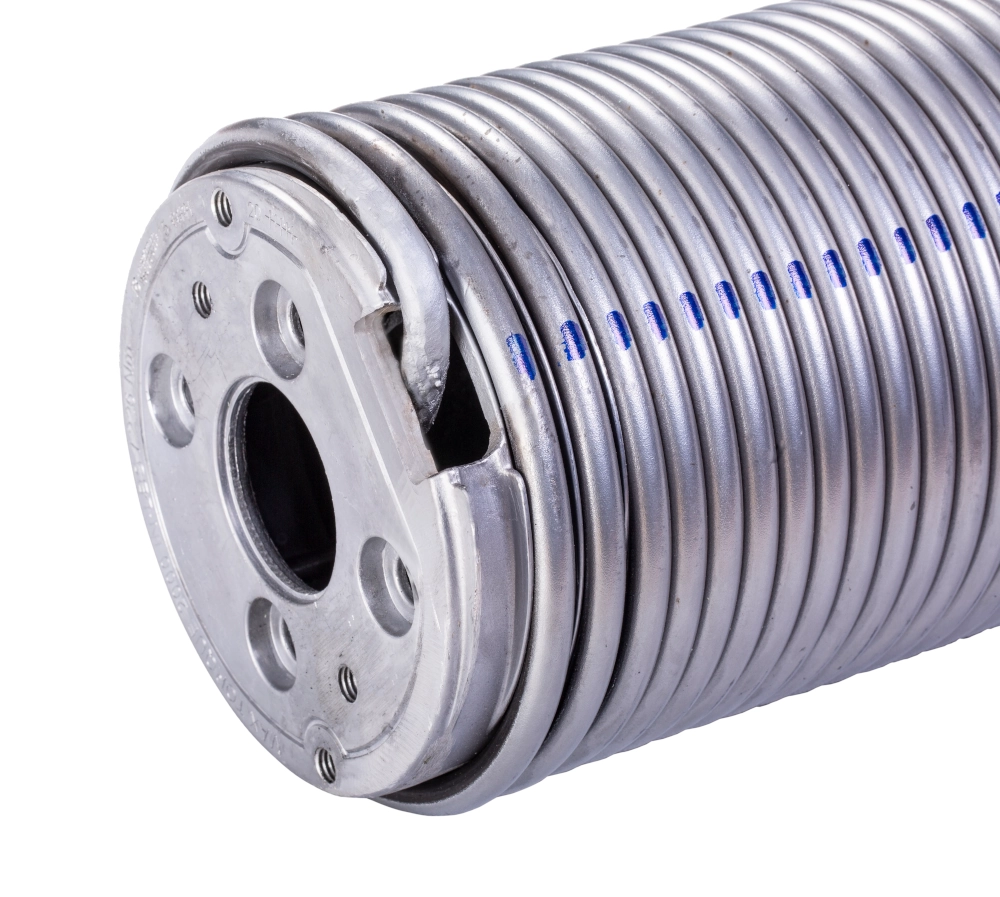

The spring is horizontal. A shaft passes through it. The aluminium spring end cannot be removed from the spring.

Garage door model names:

• THERMO
• PRISMA
• etc.

Finding the type number:

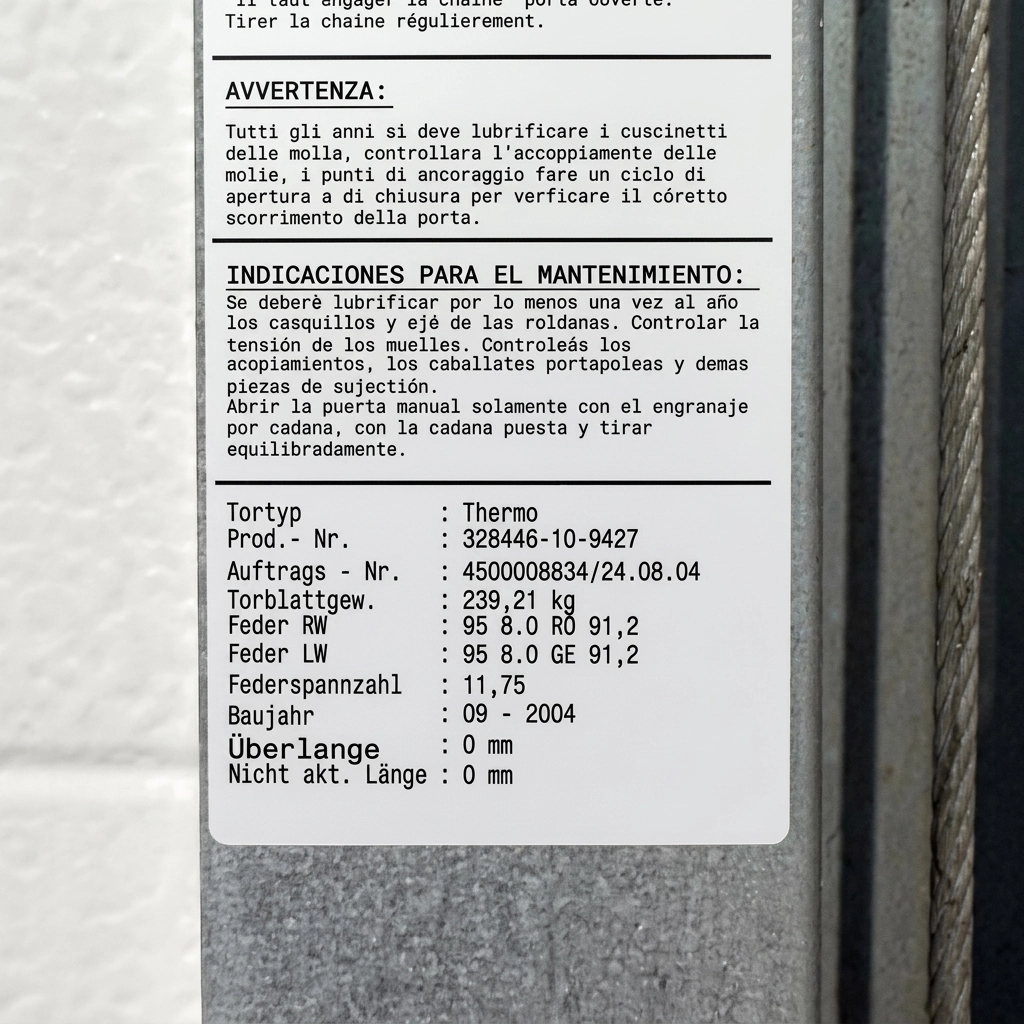

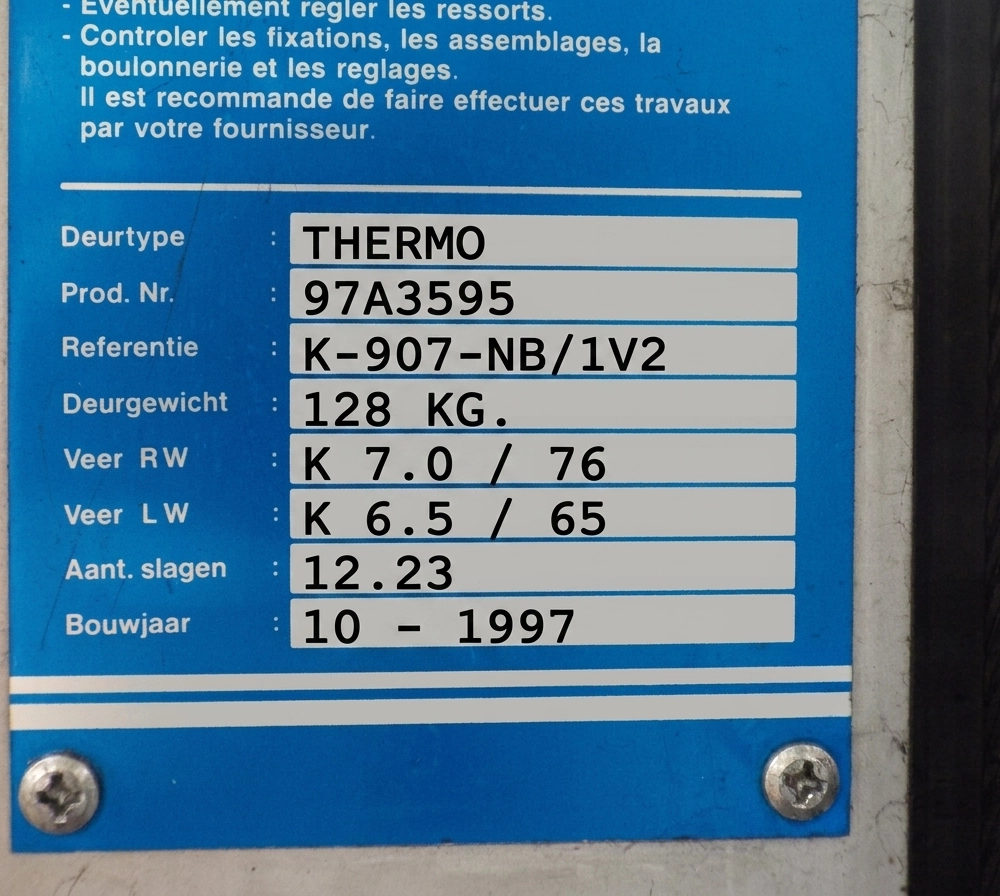

The spring type number is often shown on the garage door data plate. However, the type number may be incomplete, so the spring sometimes needs to be measured. Photograph the data plate and the garage door according to the photo guide found here: Photography guide

Send us the photographs and the outer diameter of the spring at the email address at the bottom of this page.

To place an order, please write to us at the email address below.

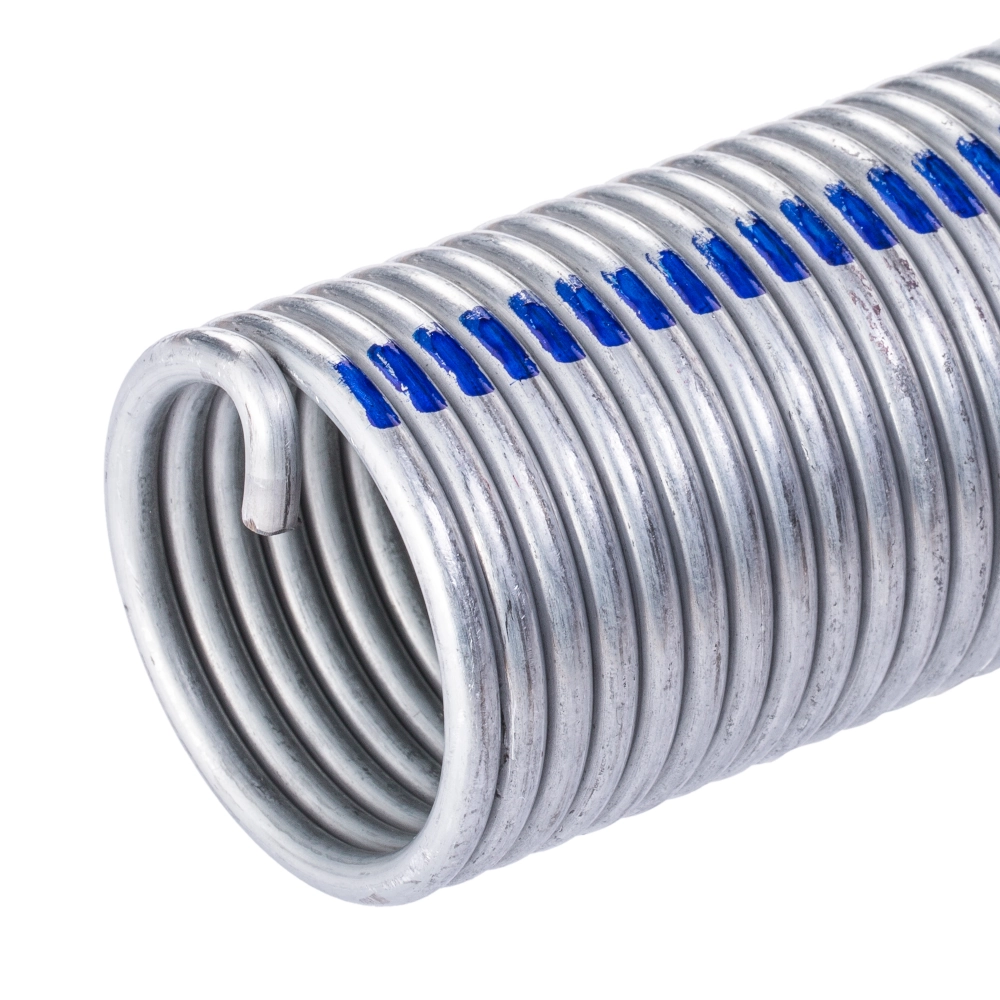

Torsion springs with a hook end for Novoferm sectional garage doors.

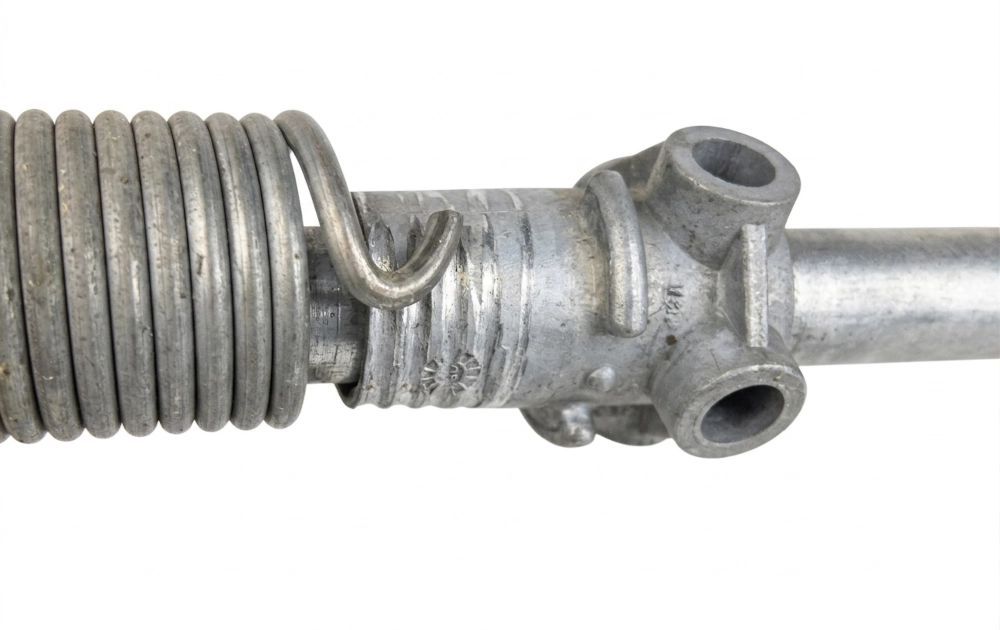

The spring has a hook at the end. The spring is horizontal. A shaft passes through it. The aluminium spring end can be removed. NOT COMPATIBLE WITH HÖRMANN!

Garage door model names:

• Maéva
• Maéva II
• etc.

Finding the type number:

The spring type is shown on the garage door data plate.

To place an order, please write to us at the email address below.

Horizontal tension springs for Novoferm sectional garage doors.

1 / 5

2 / 5

3 / 5

4 / 5

5 / 5

❮ ❯

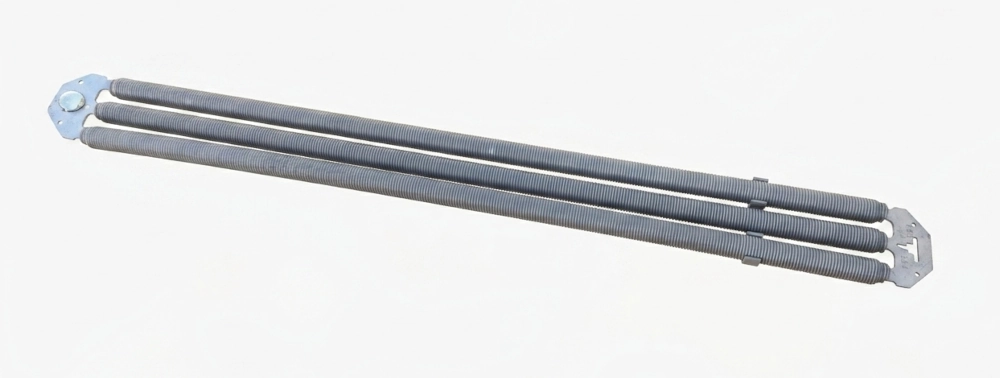

The spring is horizontal. It is located above the garage door.

Garage door model names:

• Sektionaltor Novoferm E
• ISO9
• iso20
• etc.

Finding the type number:

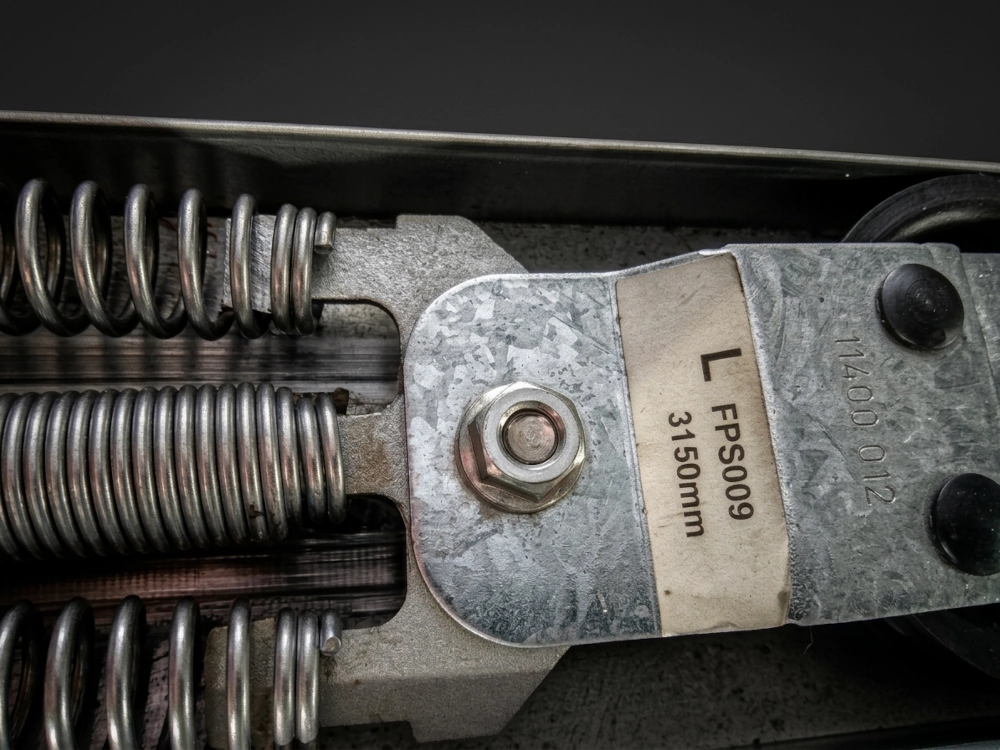

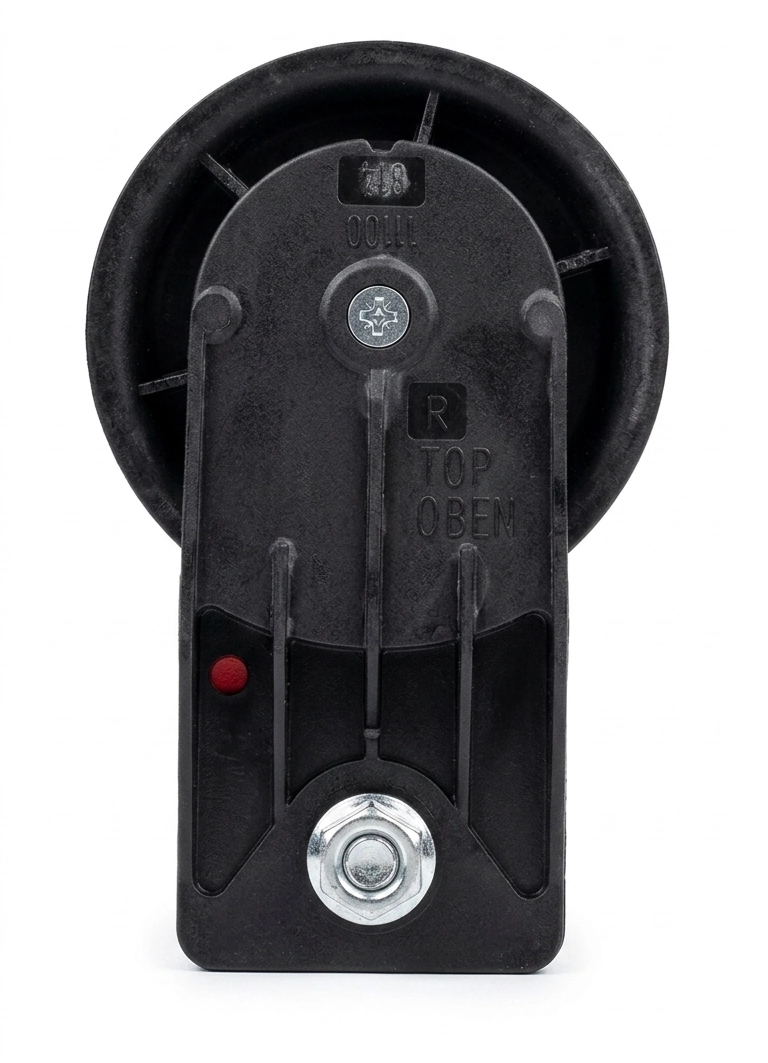

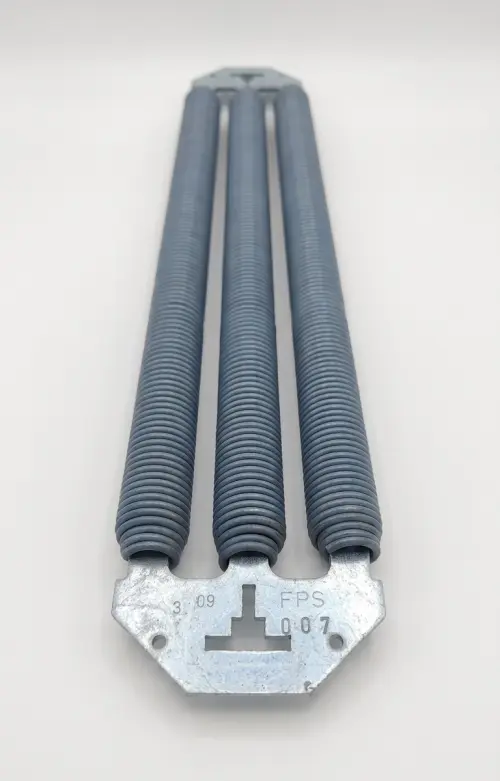

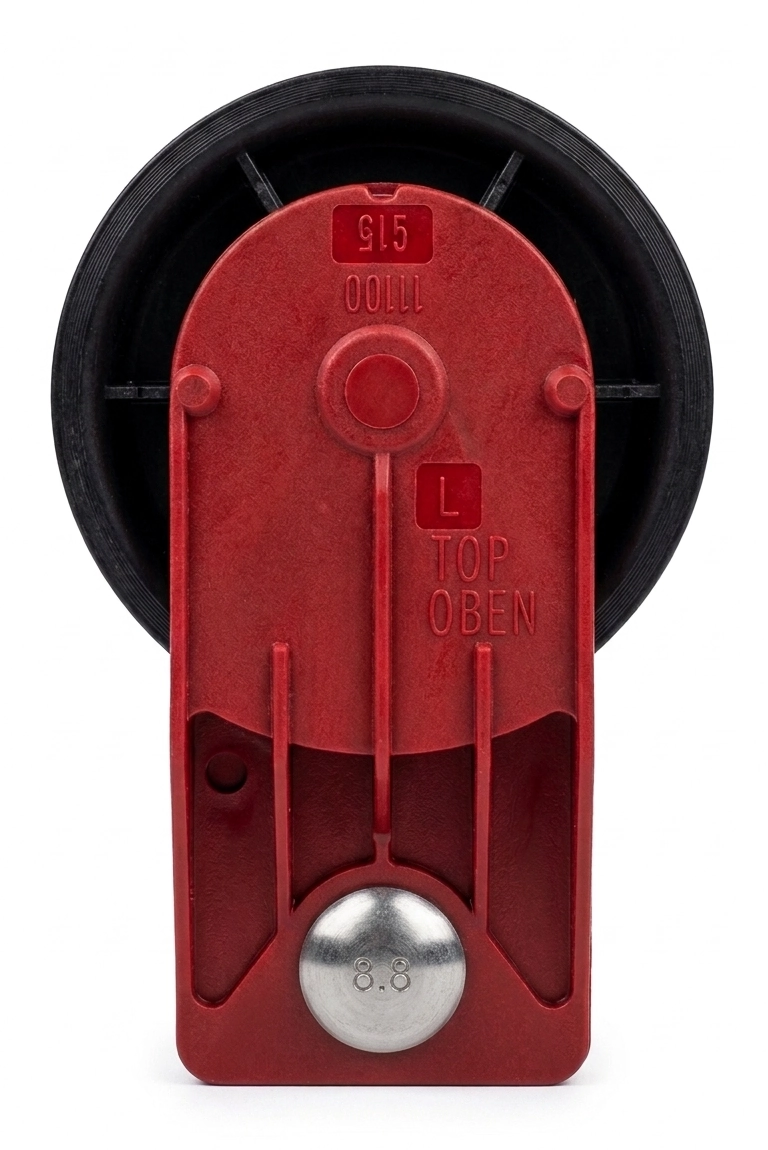

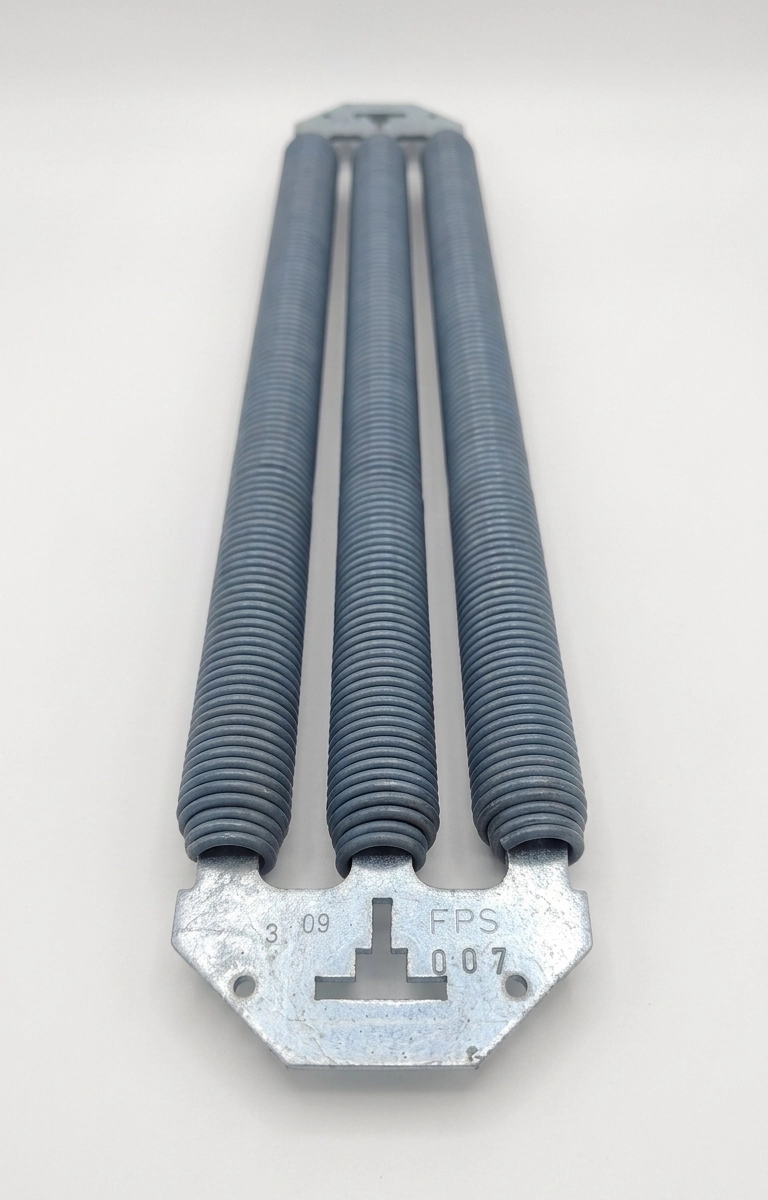

The spring type number is sometimes shown on the data plate, but not always. It is always stamped into the plate at the end of the spring. It is often located beneath the plastic or metal roller bracket. Remove the roller to find the type number. The type number begins with FPS, for example: FPS 019.

To place an order, please write to us at the email address below.

Vertical tension springs for Novoferm sectional garage doors.

1 / 4

2 / 4

3 / 4

4 / 4

❮ ❯

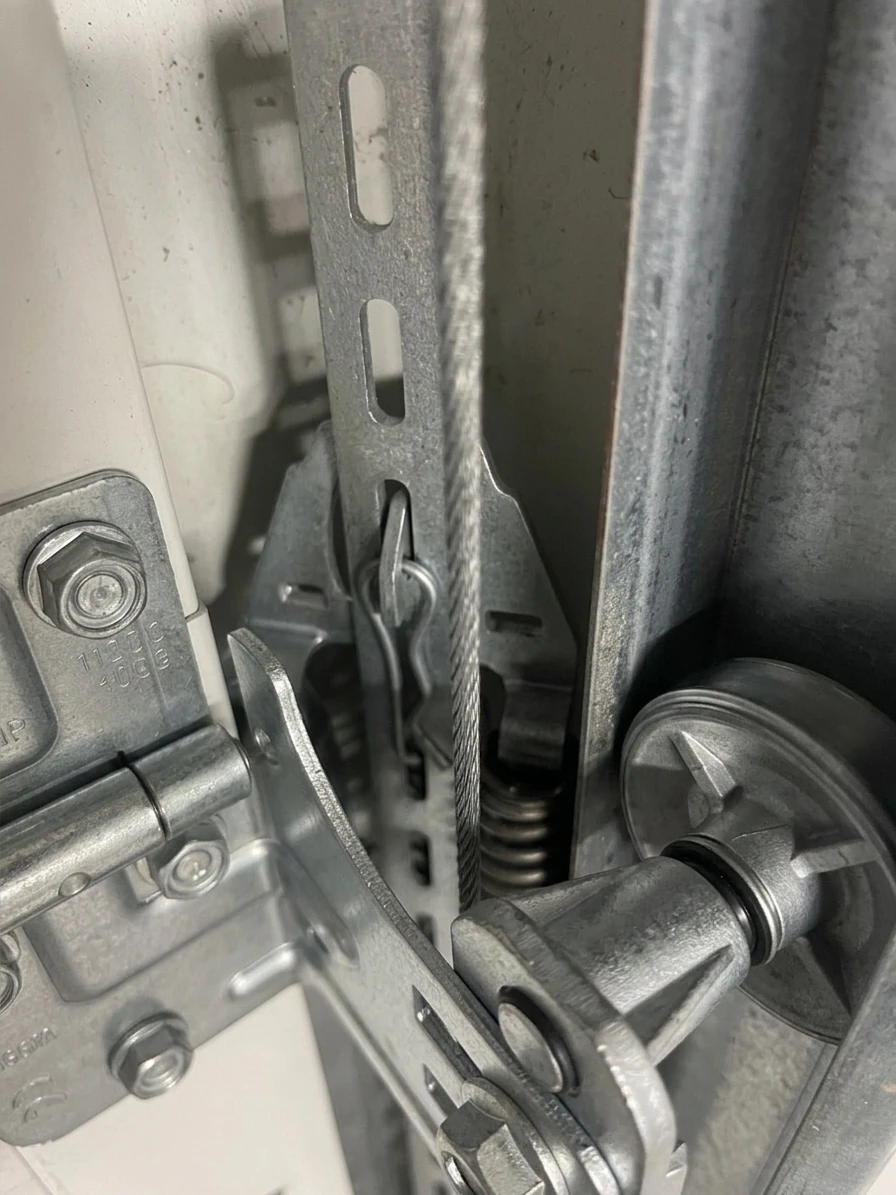

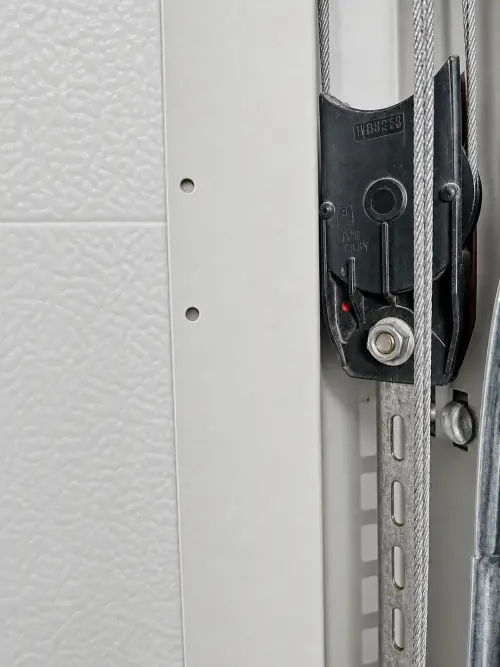

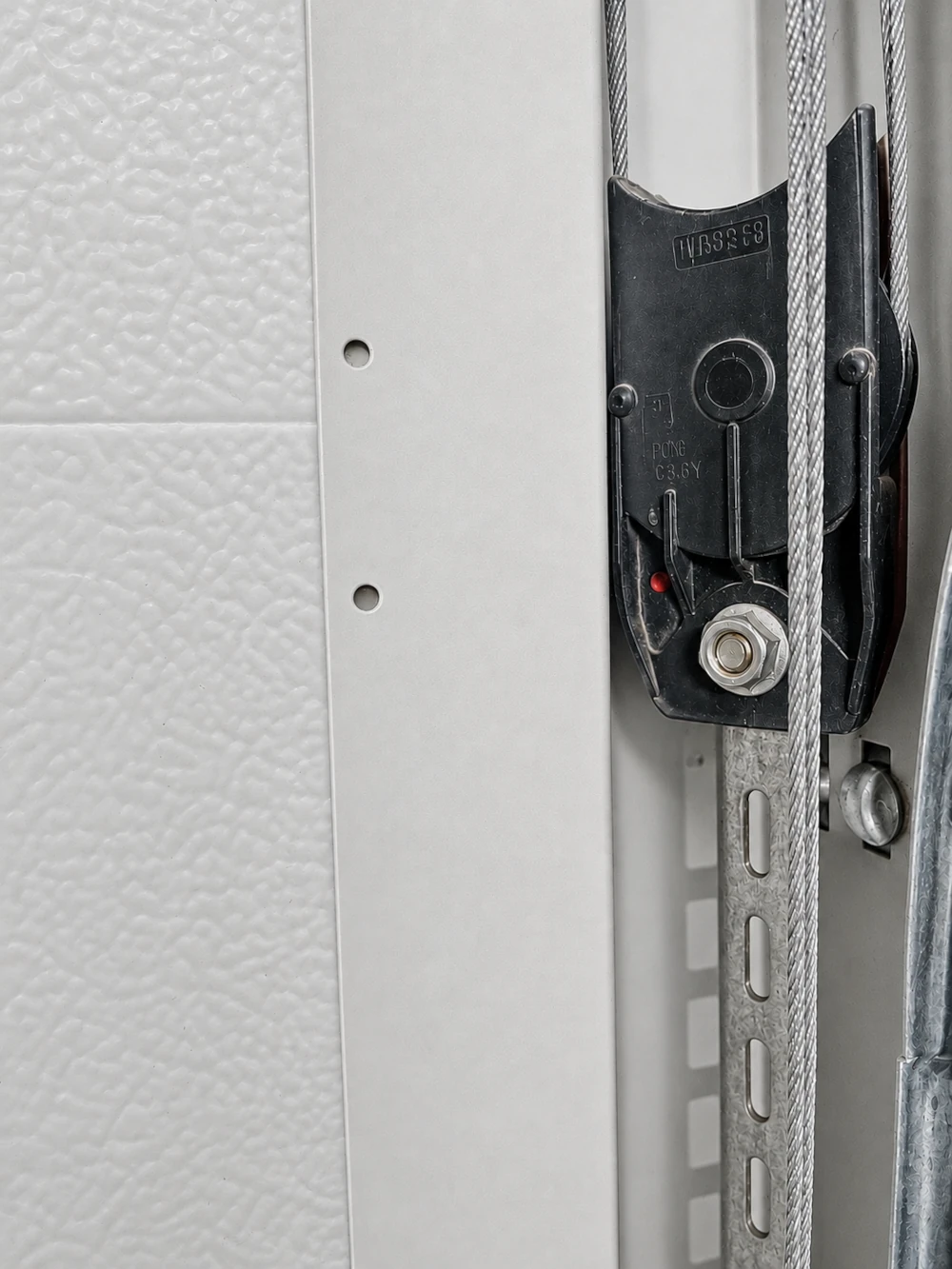

The springs are vertical. They are located inside the garage door hardware.

Garage door model names:

• Sektionaltor Novoferm E
• ISO
• ISO34
• ISO42
• ISO45
• ISO70
• etc.

Finding the type number:

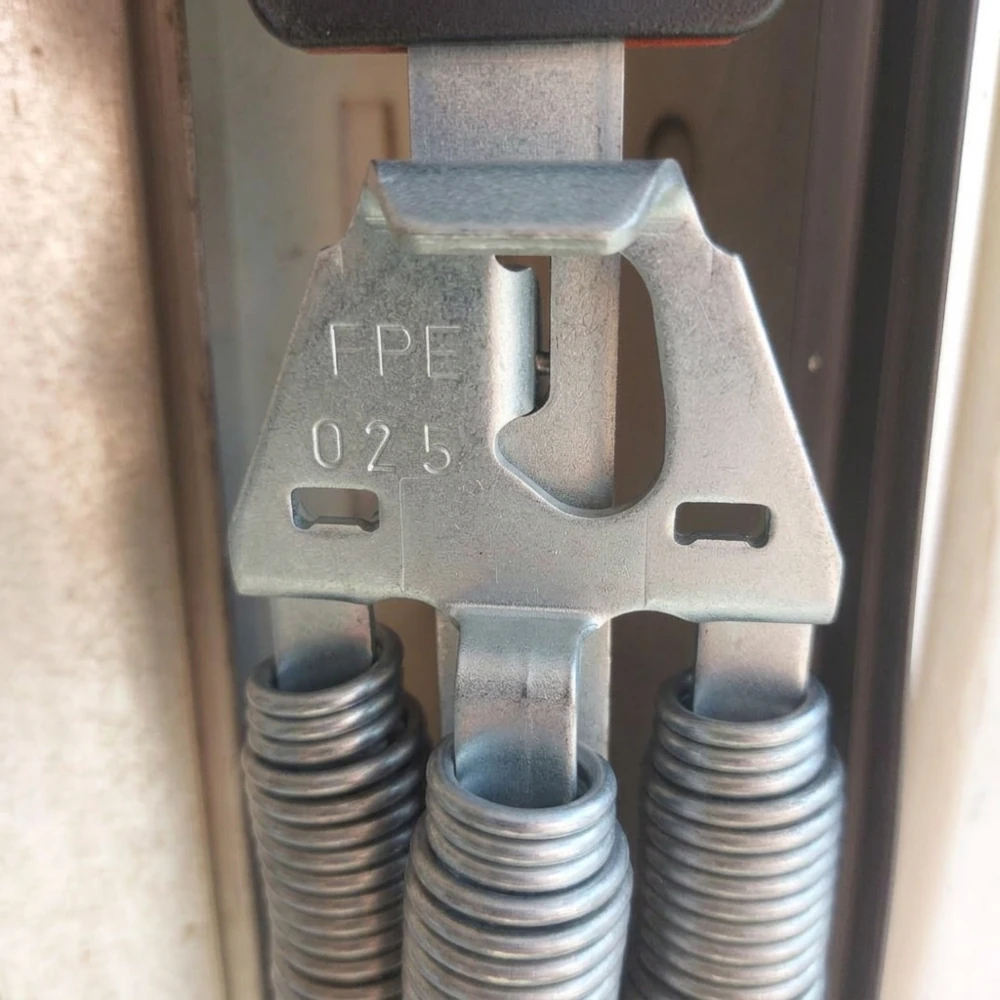

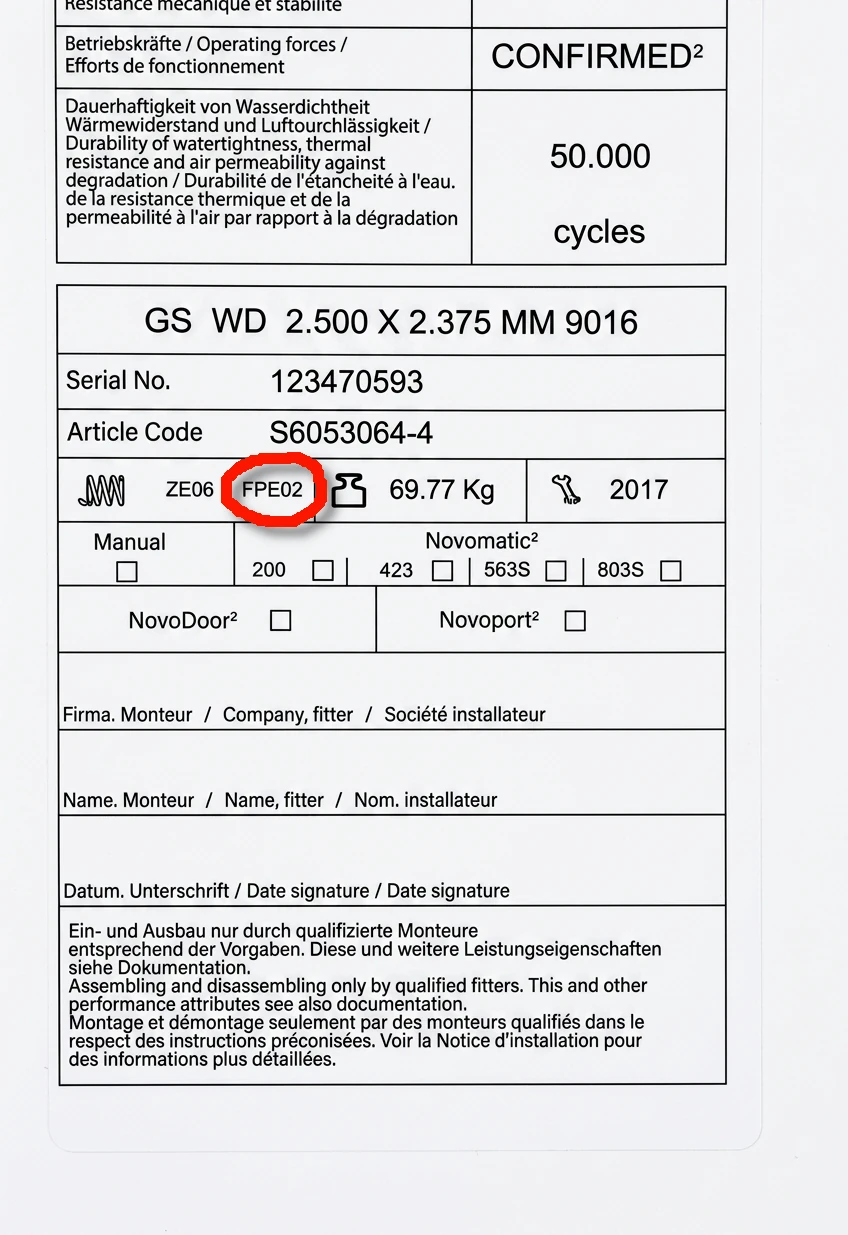

The spring type number is sometimes shown on the data plate, but not always. It is always stamped into the plate at the end of the spring. You may not be able to see the type number without removing the spring, because it is on the inside of the metal plate. The type number begins with FPE, for example: FPE 025.

To place an order, please write to us at the email address below.

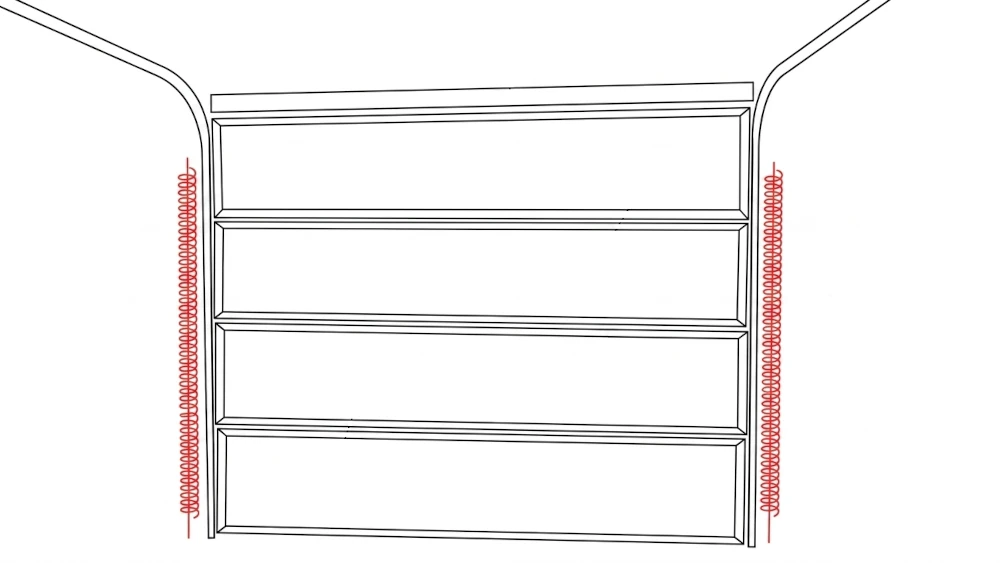

Vertical tension springs outside the frame, for sectional garage doors

The springs are vertical. They are located outside the garage door hardware.

Finding the type number:

A colour code is used instead of a type number. The end of the spring is marked with one or two colours.

To place an order, please write to us at the email address below.

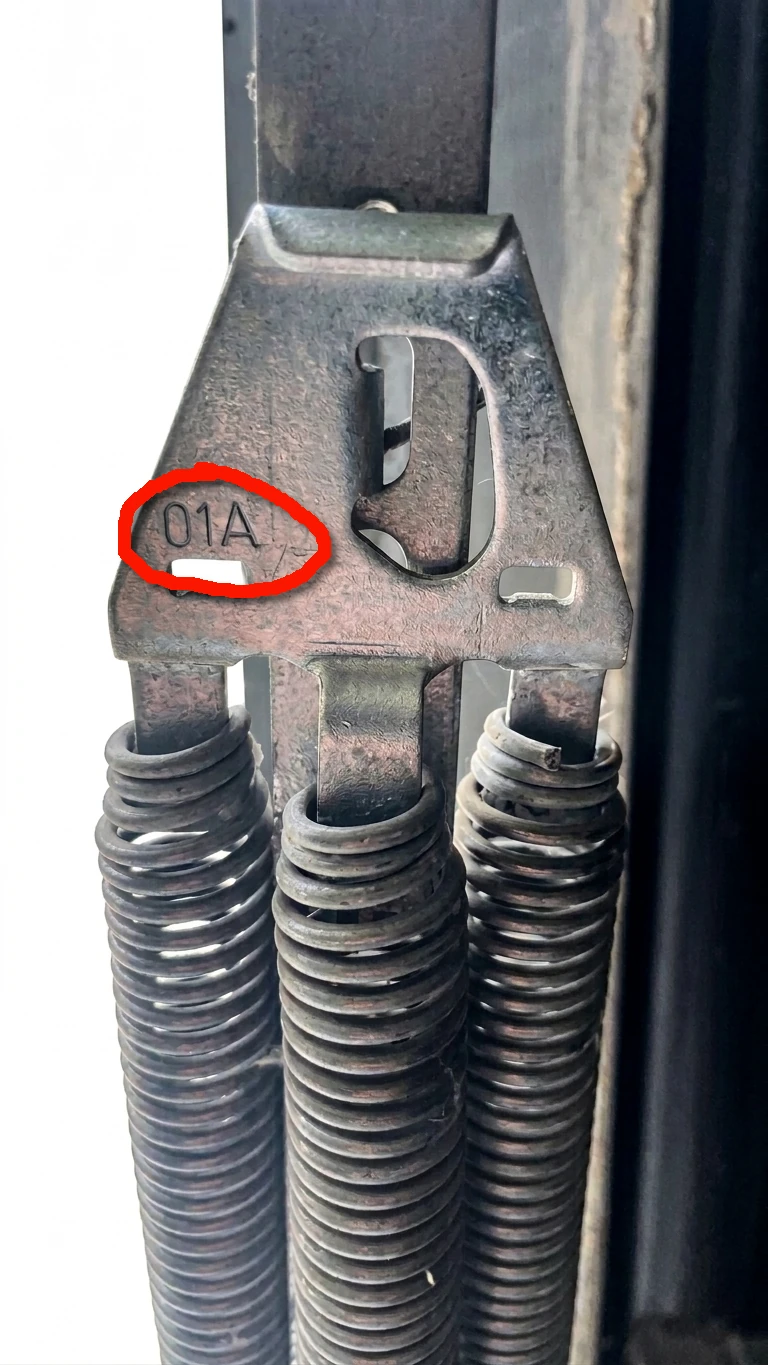

Tension springs for Novoferm up-and-over garage doors.

The springs are vertical.

Garage door model names:

• K
• etc.

Finding the type number:

The spring type number is sometimes shown on the data plate, but not always. It is always stamped into the plate at the end of the spring.

To place an order, please write to us at the email address below.
